Achieve precise and accurate wheel alignment with the Toe Plates Wheel Alignment Tool, a must-have for anyone seeking to enhance their vehicle's performance. Whether you’re a DIY enthusiast or a professional mechanic, this tool ensures accurate toe angle measurements without the need for removing wheels. The kit includes two 5-meter tape measures with 1/32" increments and four adjustable alignment rods, making it suitable for a wide range of vehicles, from sedans to SUVs.

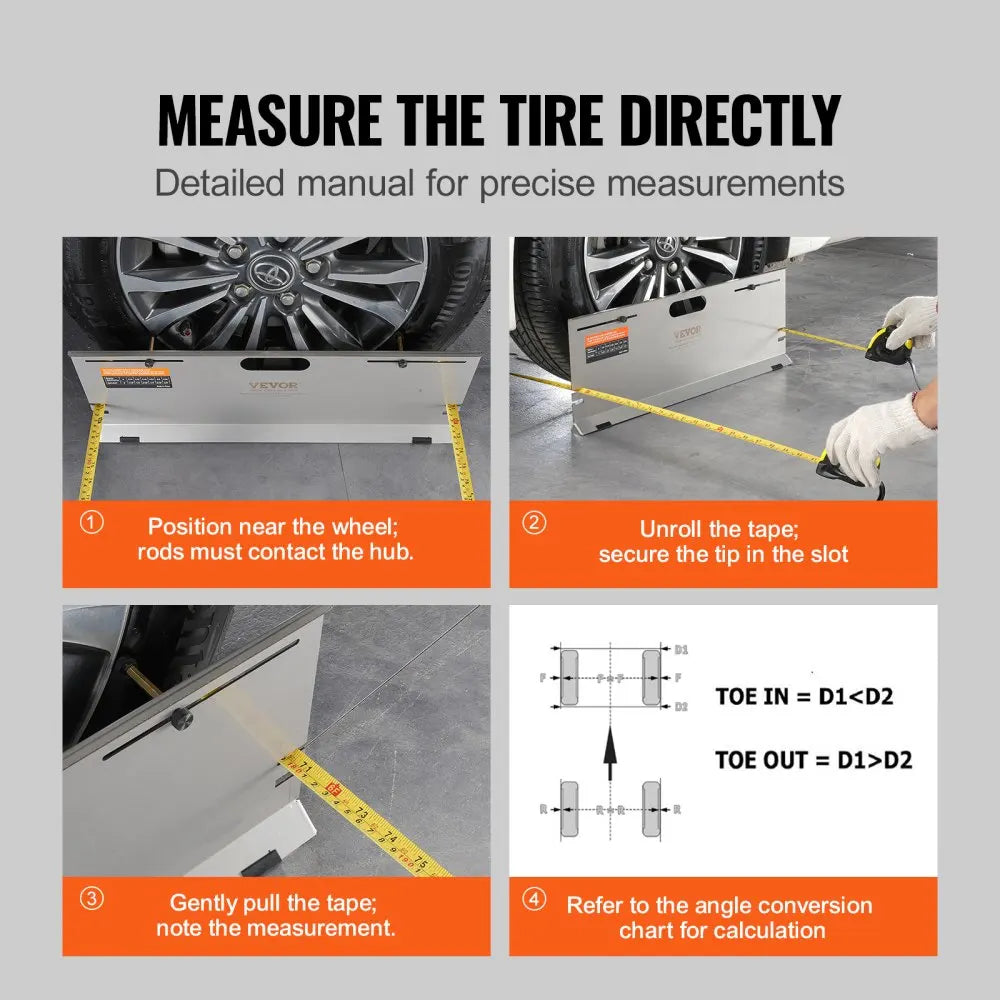

The tool measures directly through the hub of the wheel, which eliminates the common inaccuracies caused by tire bumps or irregularities in the sidewall. This ensures that your wheel alignment is optimized for better driving performance. Designed with a magnetic slot on the toe plates, it holds the tape measure head securely in place, making solo measurements easy and accurate.
The tool’s adjustable foot and stable triangular base are engineered for one-person operation, eliminating the need for assistance and providing stable and precise measurements without the risk of instability. Additionally, the tool is compatible with a wide range of hub sizes and vehicle types, from small sedans to large SUVs and pickup trucks, providing versatility and convenience.
Key Features:
-

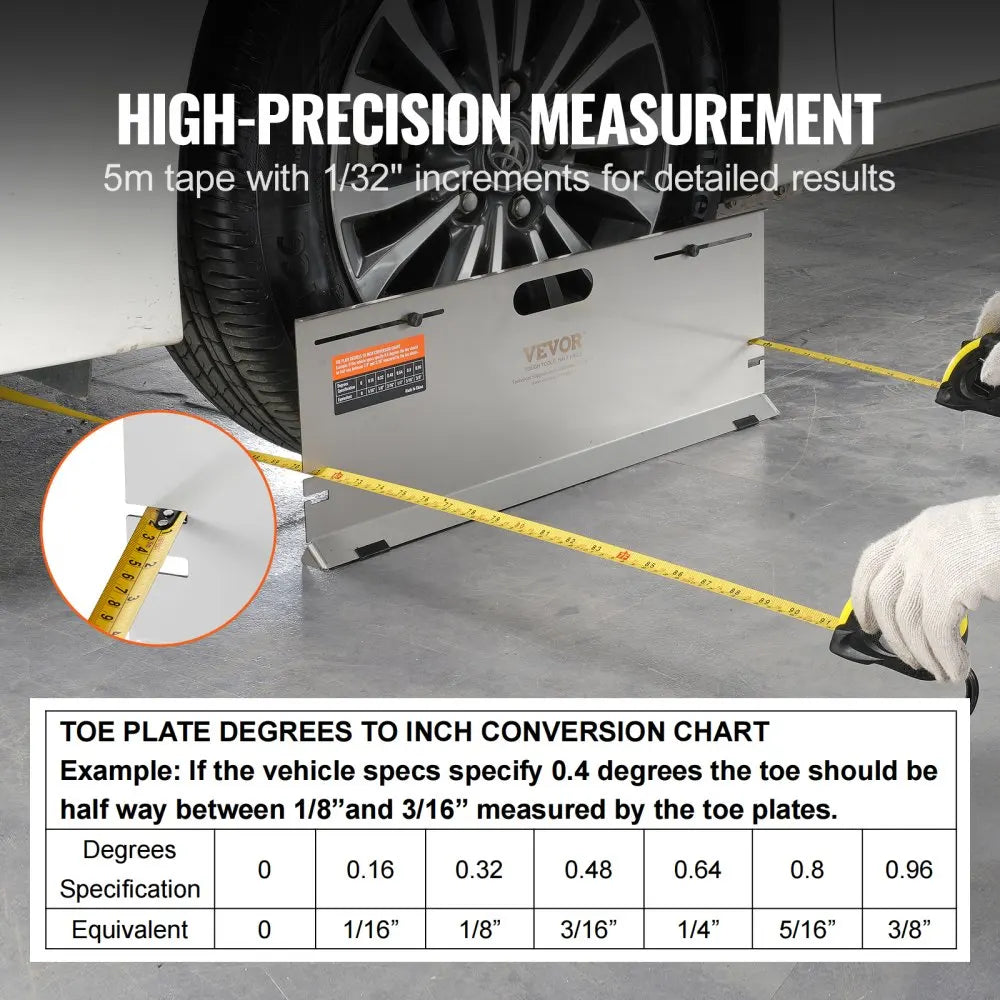

Precision Toe Angle Measurement: Directly measure the toe angle on the hub, ensuring accurate results without the need for tire removal. The tool includes two 5m tape measures with precise 1/32" increments and professional guidance for easy operation.
-

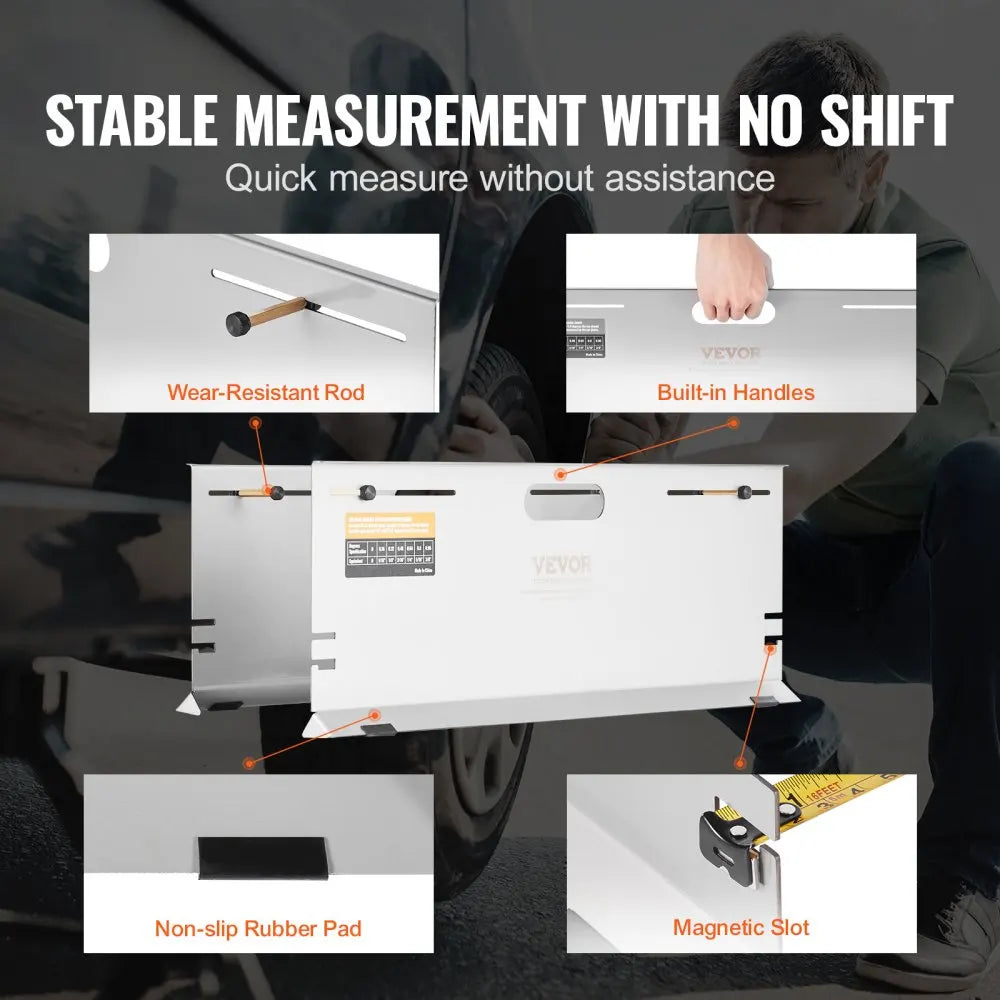

Magnetic Slot Design: Keeps the tape measure head securely in place, preventing slippage or shifting during measurements. This feature ensures the accuracy of your readings, even when performing solo alignment tasks.
-

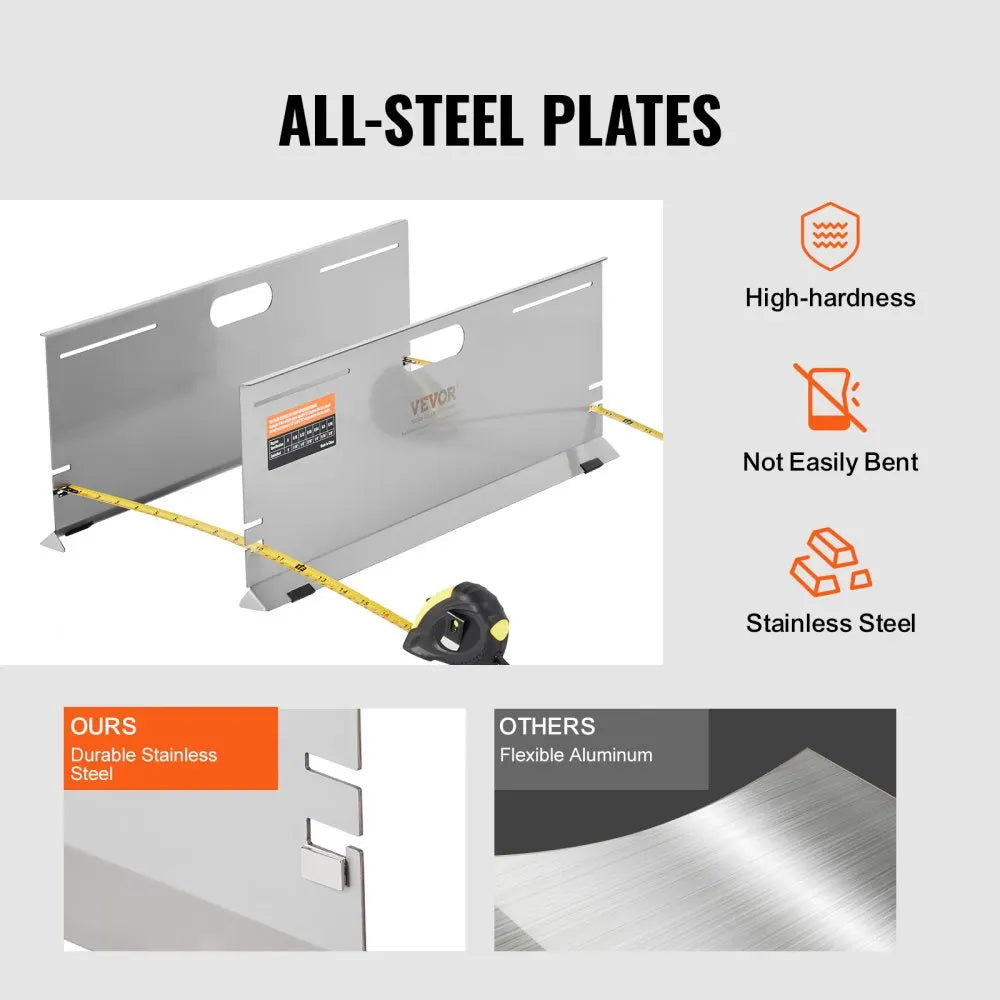

All-Steel Plates: The alignment plates are made from SUS201 stainless steel, offering higher hardness, enhanced resistance to deformation, and rust-proof properties. This upgrade over traditional aluminum ensures increased longevity and reliability.
-
Stable Non-slip Base: The tool features a triangular base with non-slip rubber elements, preventing shaking or instability and ensuring precise measurements during use.
-
Vehicle Compatibility: The alignment tool is suitable for a wide range of vehicles, including sedans, SUVs, and pickup trucks, and is compatible with various hub sizes ranging from 15" to 22" hubs, accommodating wheel diameters from 23.5" to 30.6".
Specifications:
-
Material: SUS201 Stainless Steel
-
Type: Wheel Alignment Tool
-
Measurement Increments: 1/32"
-
Tape Measure Length: 5m each
-
Alignment Rods: 4 adjustable rods (10.5"-21.2")
-

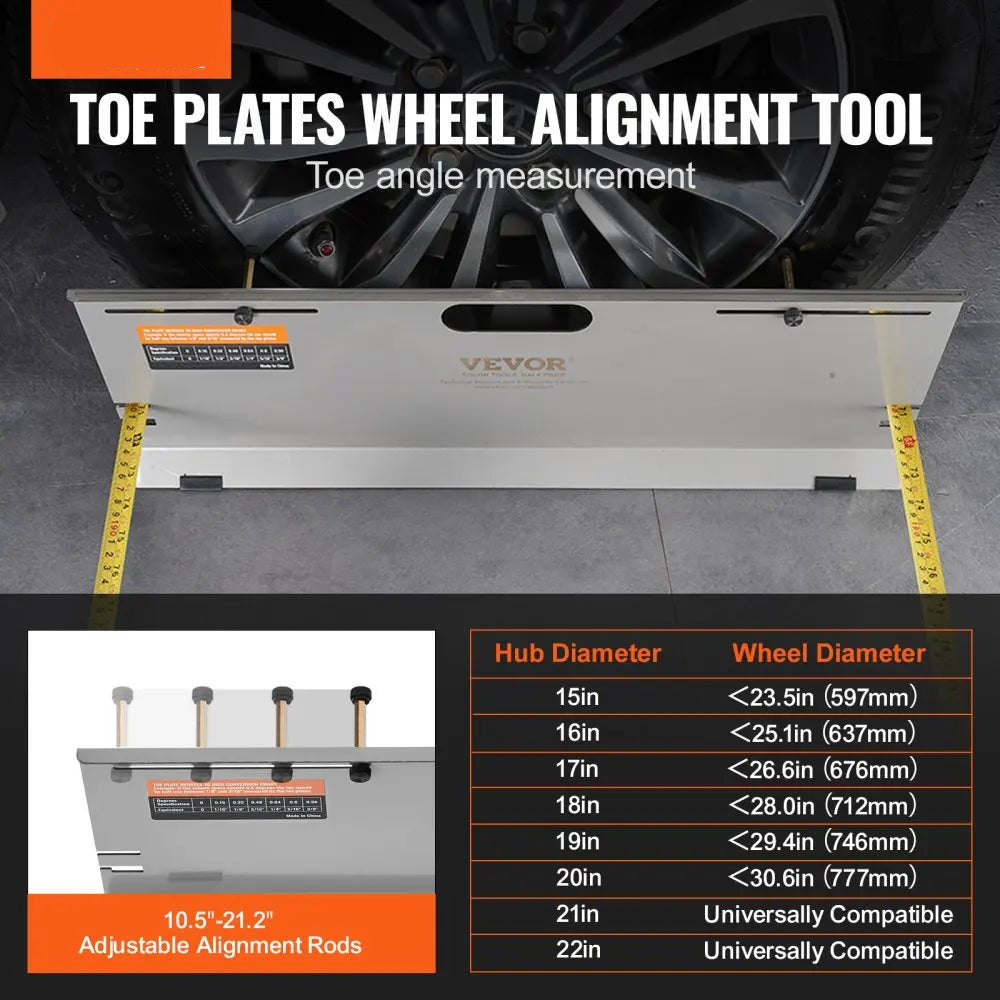

Hub Size Compatibility:
- 15 in hubs (wheel diameter <23.5 in / 597 mm)
- 16 in hubs (wheel diameter <25.1 in / 637 mm)
- 17 in hubs (wheel diameter <26.6 in / 676 mm)
- 18 in hubs (wheel diameter <28.0 in / 712 mm)
- 19 in hubs (wheel diameter <29.4 in / 746 mm)
- 20 in hubs (wheel diameter <30.6 in / 777 mm)
- 21 in hubs (all applicable)
- 22 in hubs (all applicable)
-
Material Type for Plates: SUS201 Stainless Steel (Thickened)
-
Base Design: Triangular with non-slip rubber elements
-
Usage: Suitable for one-person operation

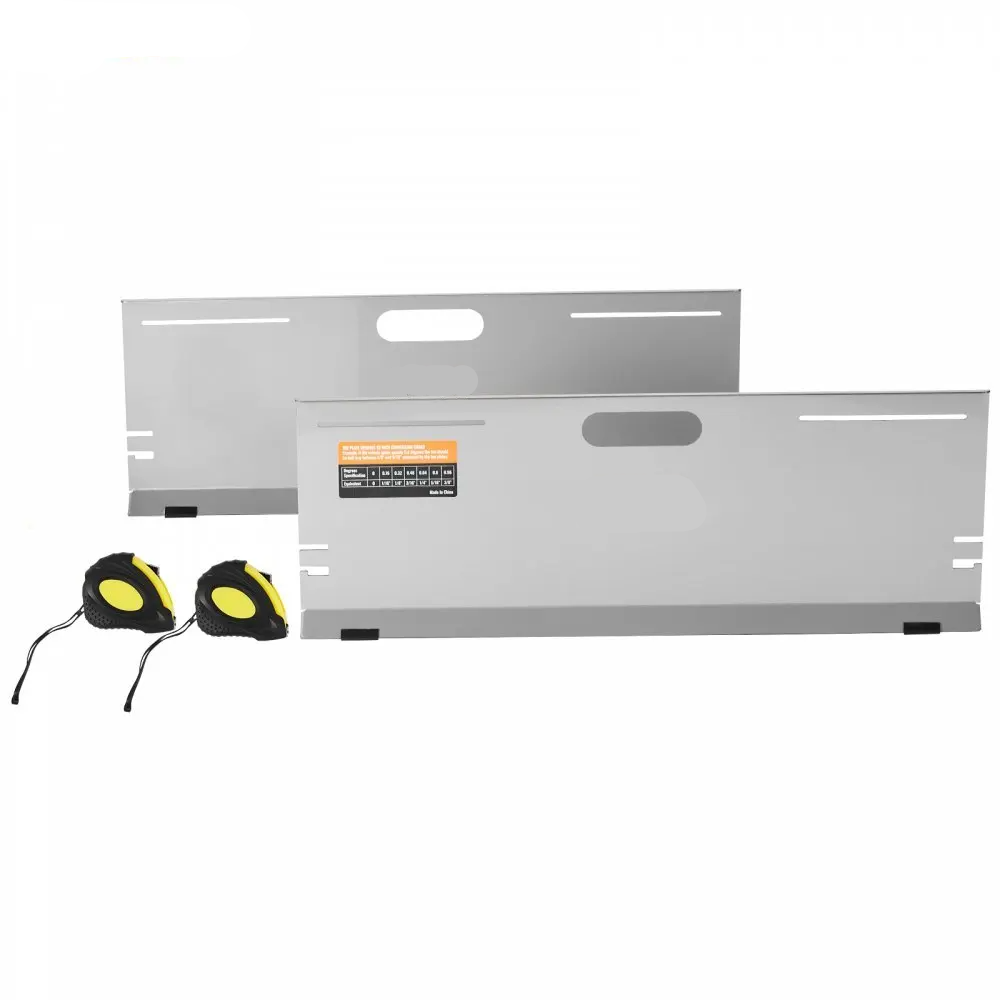

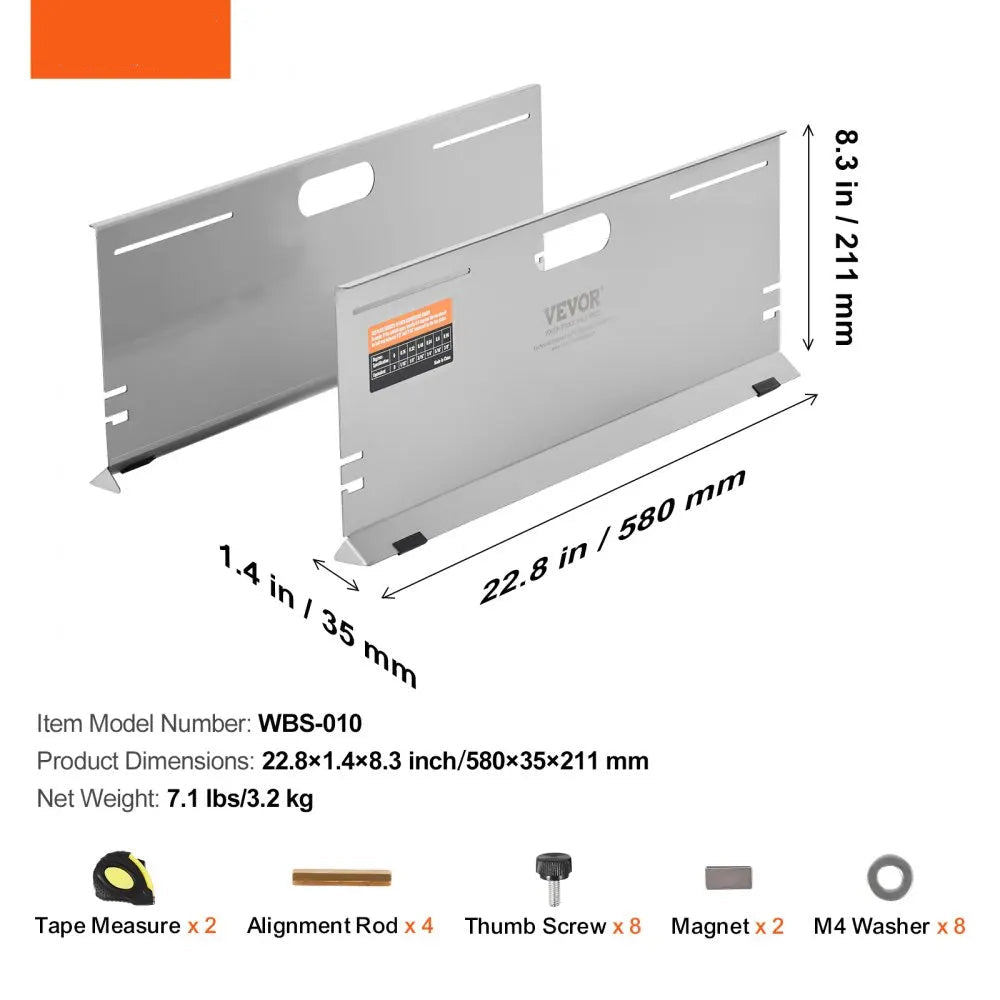

Package Contents:
- 2 x 5m Tape Measures (1/32" increments)
- 4 x Alignment Rods (10.5"-21.2" adjustable)
- 1 x Toe Plates Wheel Alignment Tool with Magnetic Slot
- User Manual
This Toe Plates Wheel Alignment Tool is an essential addition to any garage, providing precise, accurate measurements that ensure optimal wheel alignment and driving performance. Perfect for professional use or DIY projects, this tool will give you the confidence to handle any wheel alignment task with ease and efficiency.
